01

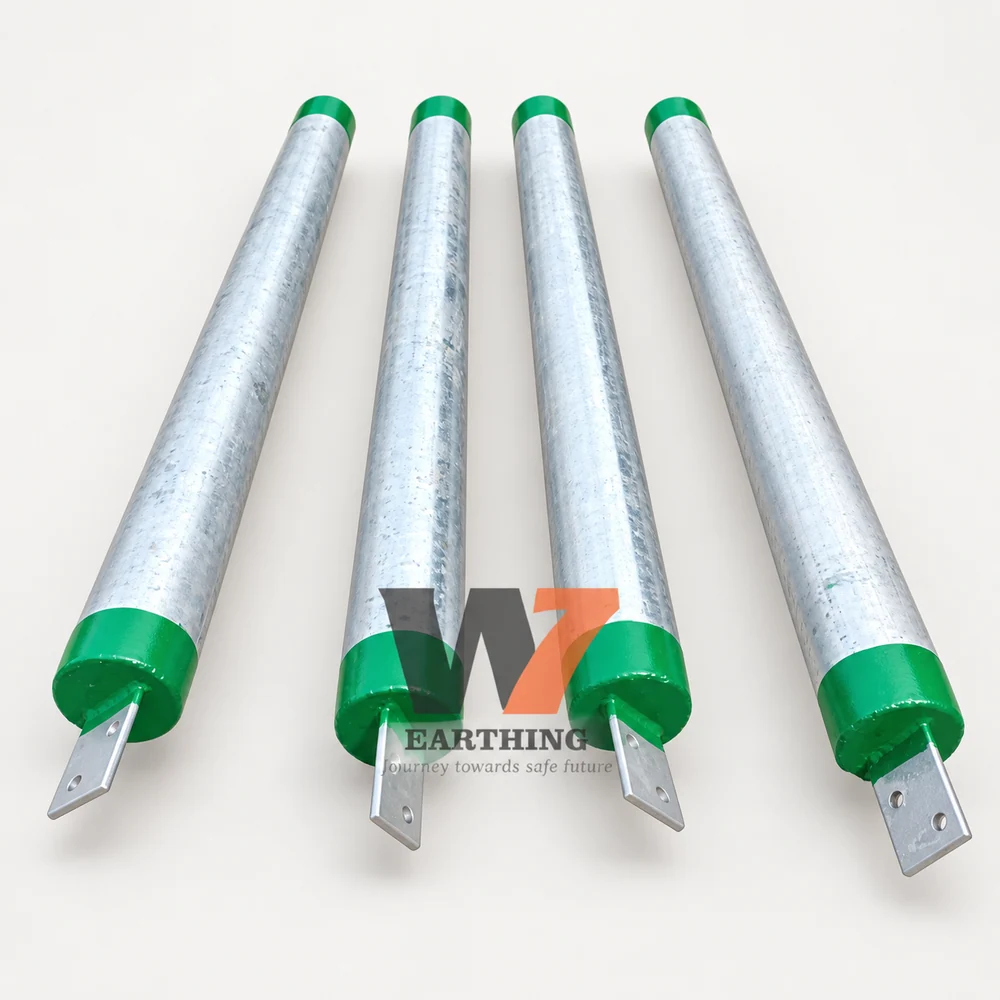

GI electrode systems
Product / configurationProfile-listed options

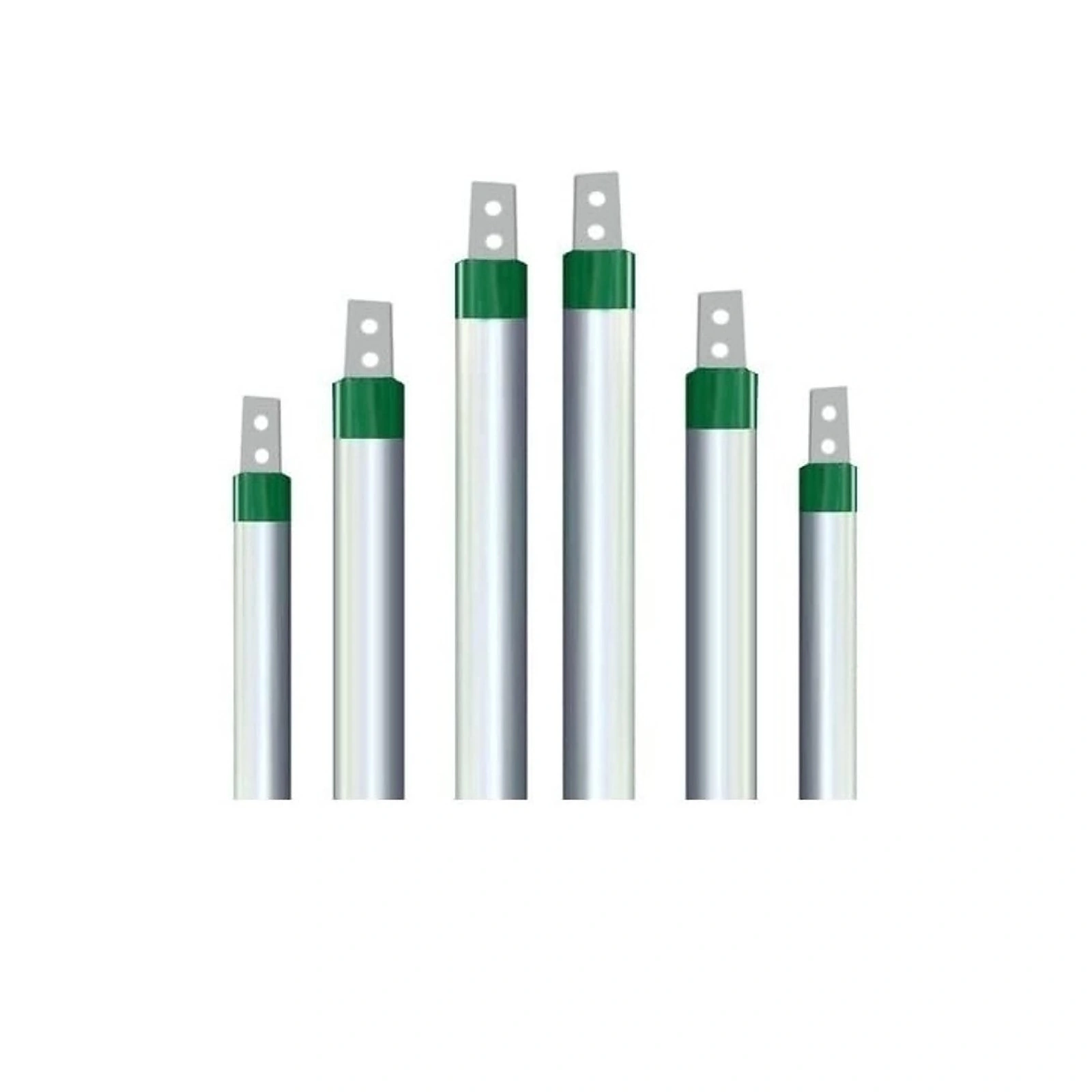

Single-pipe electrodeOuter diameter 50, 80, 88 or 100 mm · Length 1, 2 or 3 m · GI terminal 40×6 or 50×6 mm

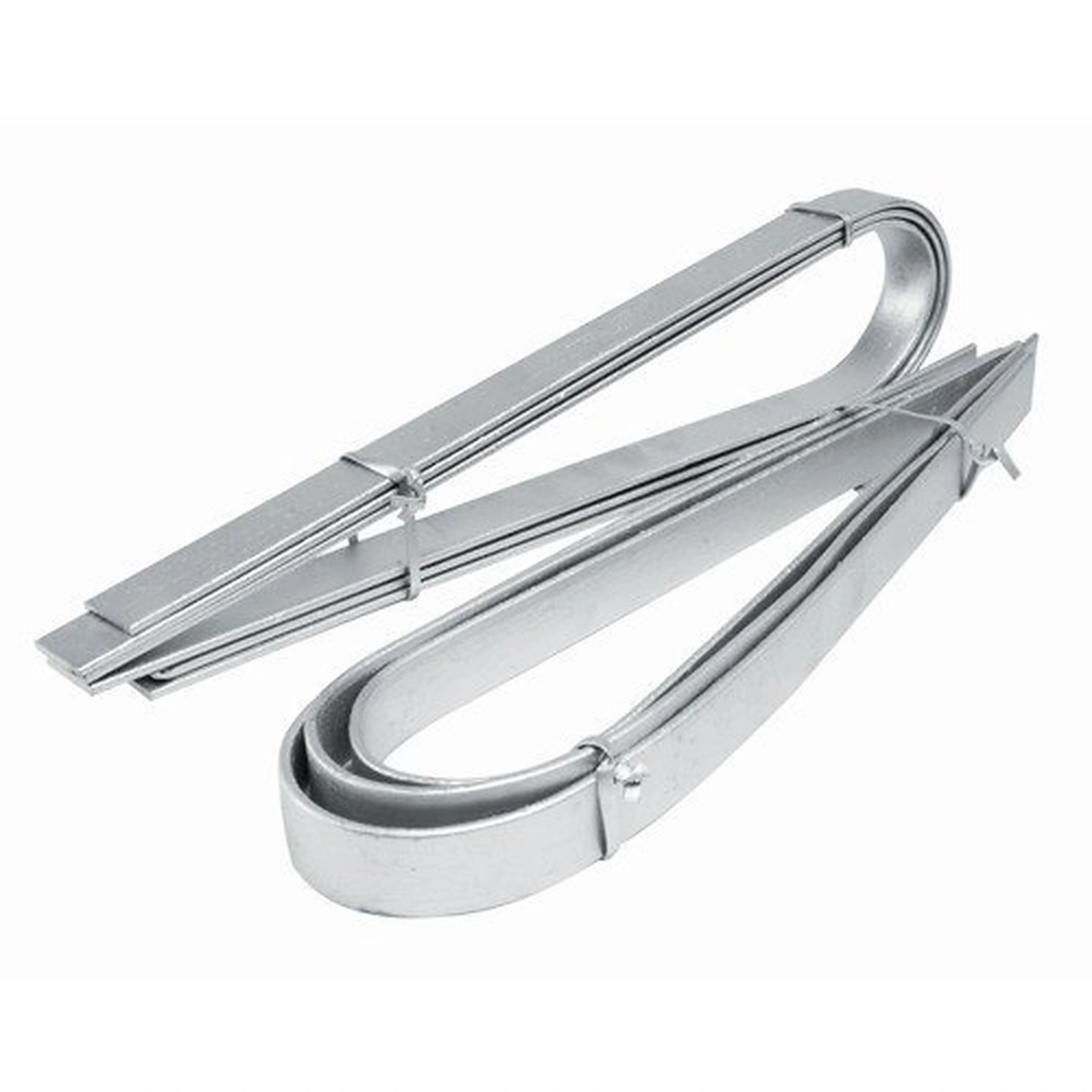

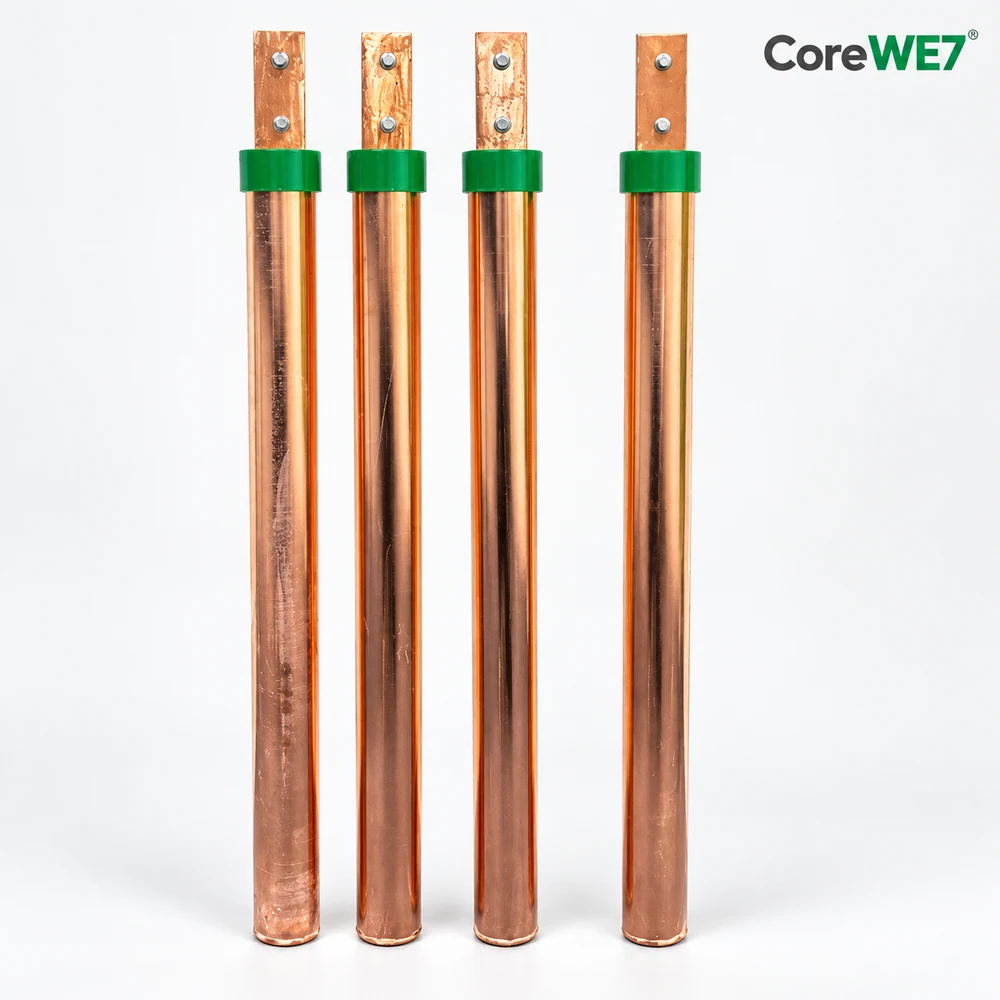

Pipe-in-strip electrodeOuter diameter 50, 80 or 88 mm · Length 1, 2 or 3 m · Inner HDGI strip 25×3 or 50×6 mm
Pipe-in-pipe electrodeOuter diameter 50, 80, 88 or 100 mm · Length 1, 2 or 3 m · Inner pipe 25 or 50 mm
02

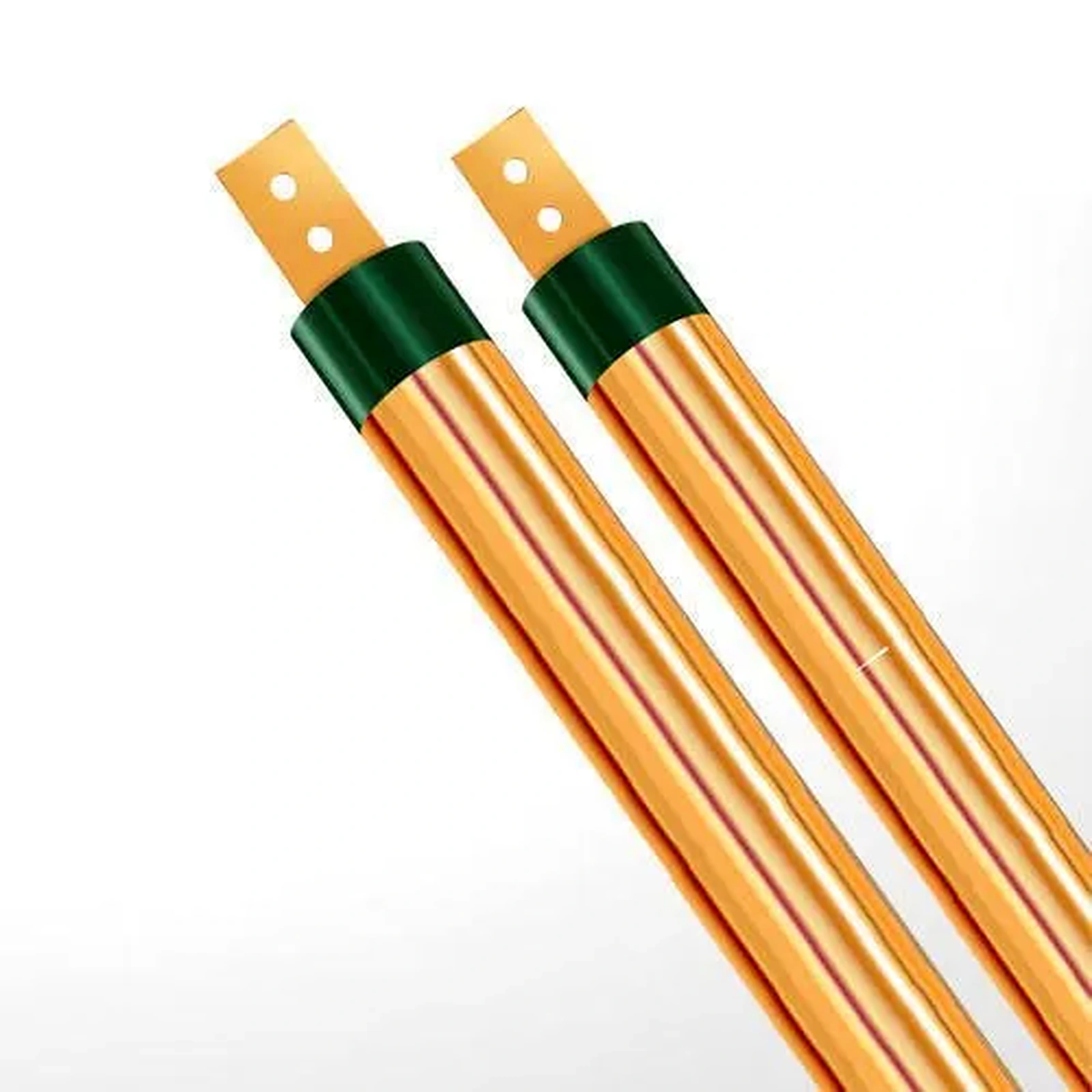

Copper-bonded electrode systems
Product / configurationProfile-listed options
Single-pipe electrodeOuter diameter 50, 80 or 88 mm · Length 1, 2 or 3 m · Terminal 40×6 or 50×6 mm
Pipe-in-pipe electrodeOuter diameter 50 or 80 mm · Length 1, 2 or 3 m · Inner pipe 25 or 50 mm
Copper bondingCompany profile lists copper bonding up to 250 microns where specified; confirm for the offered model
03

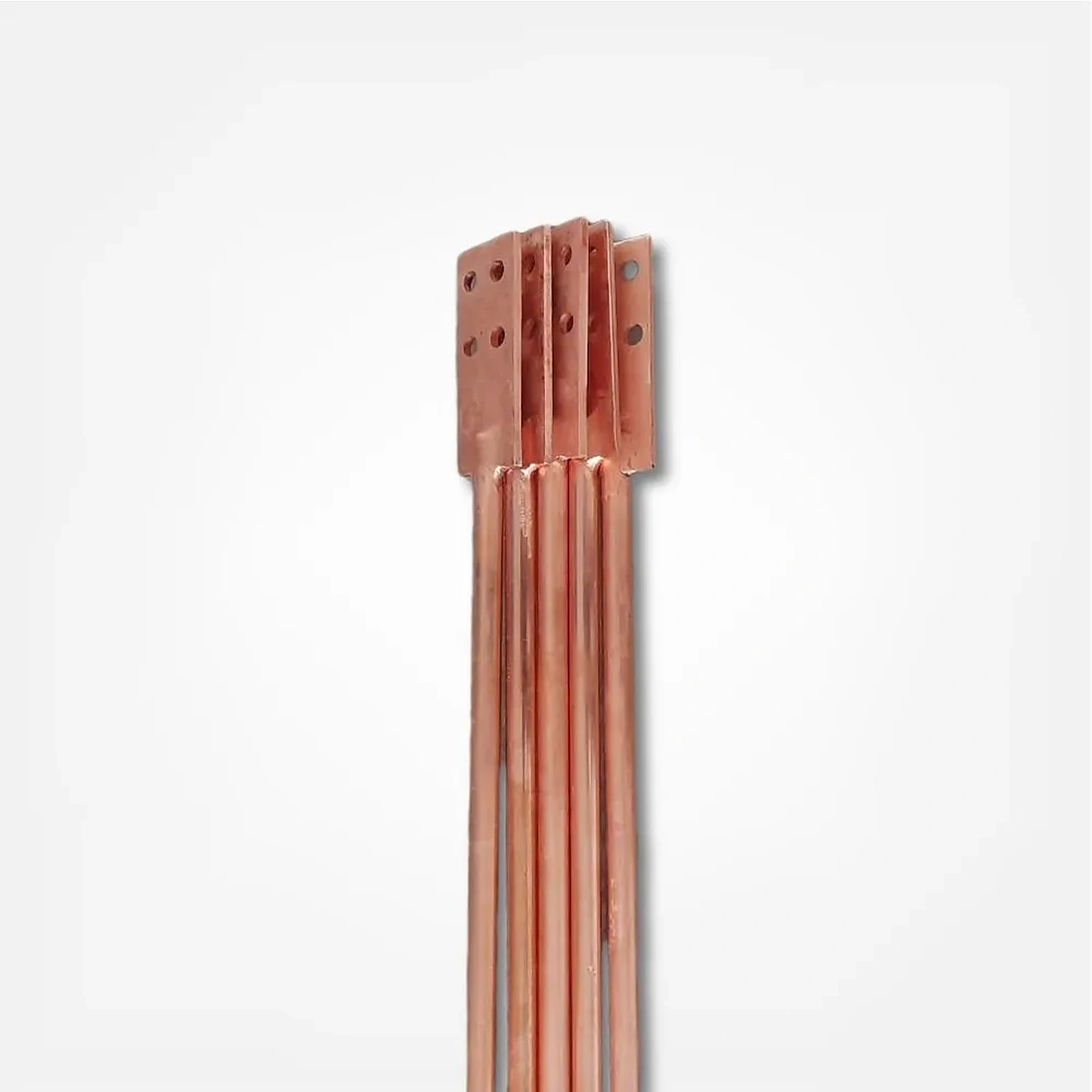

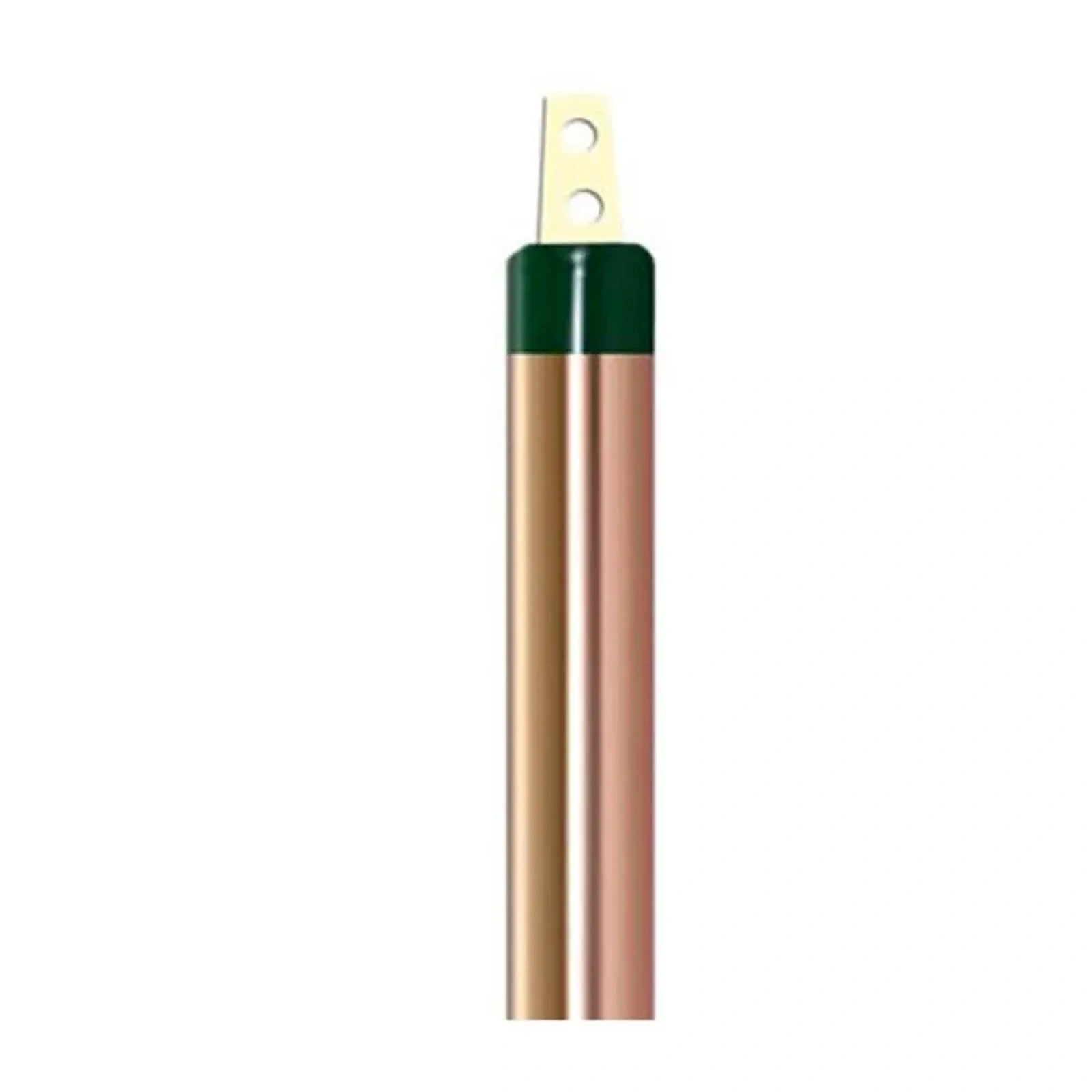

Pure copper electrodes
Product / configurationProfile-listed options
Solid rodDiameter 14, 17, 20 or 25 mm · Length 1, 2 or 3 m · Terminal 40×6 mm
Single-pipe electrodeOuter diameter 50 or 80 mm · Length 1, 2 or 3 m · Terminal 40×6 or 50×6 mm
04

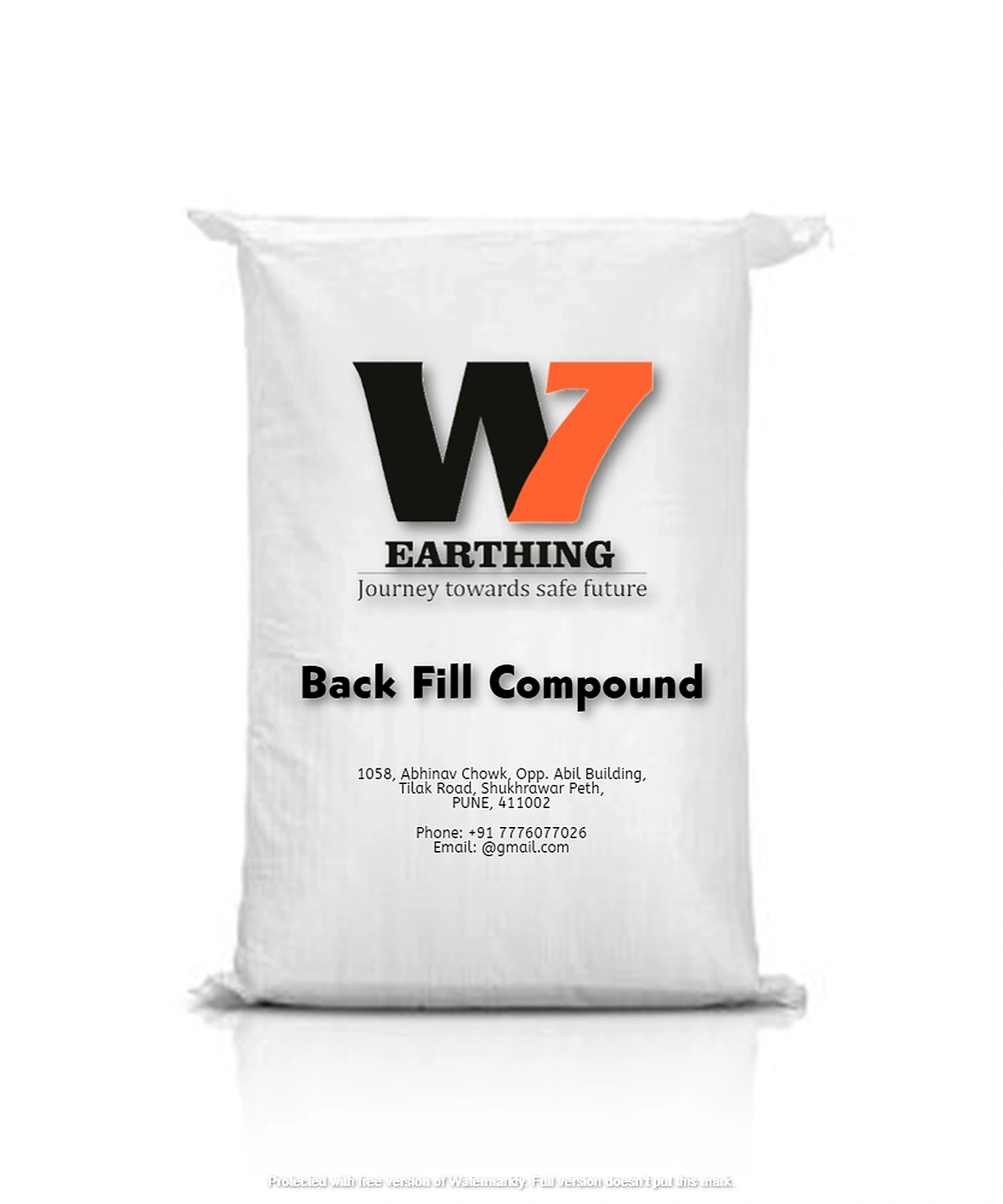

Ground enhancement materials
Product / configurationProfile-listed options

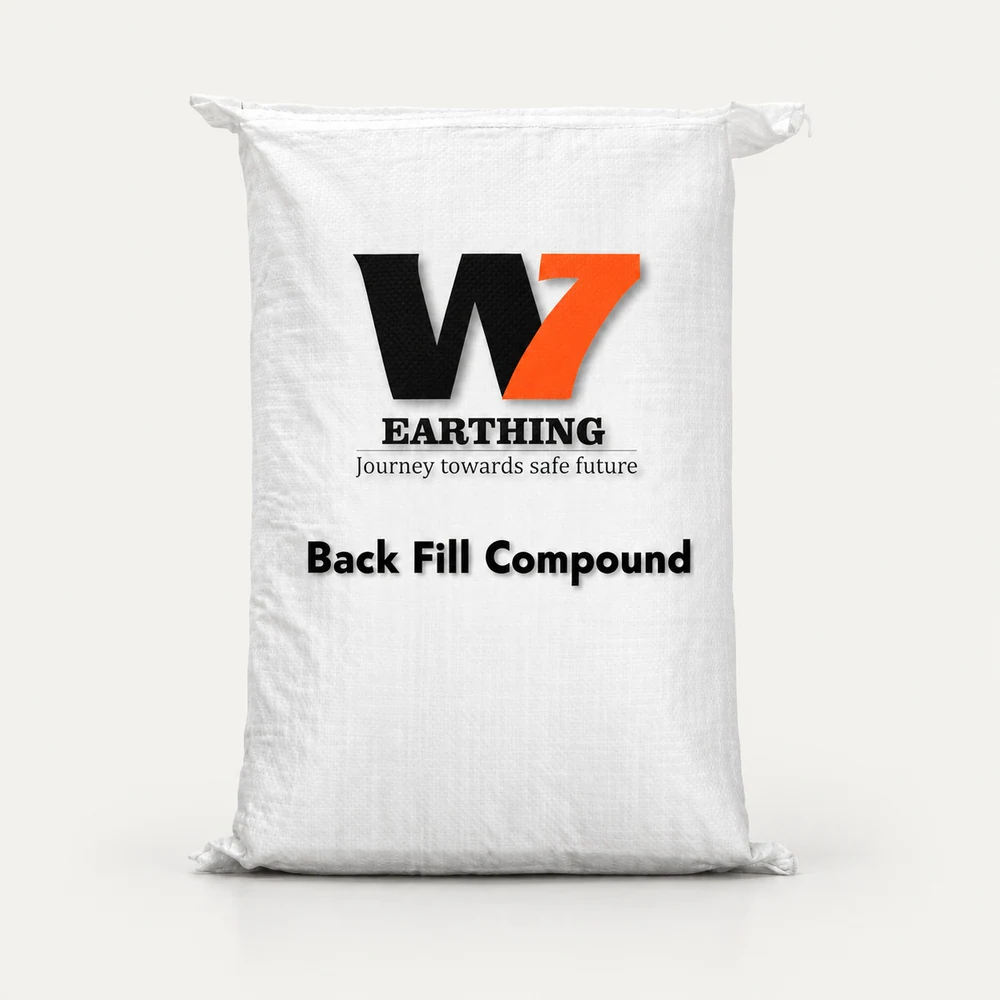

Graphite-based compoundProfile-listed packs: 5, 15 and 25 kg

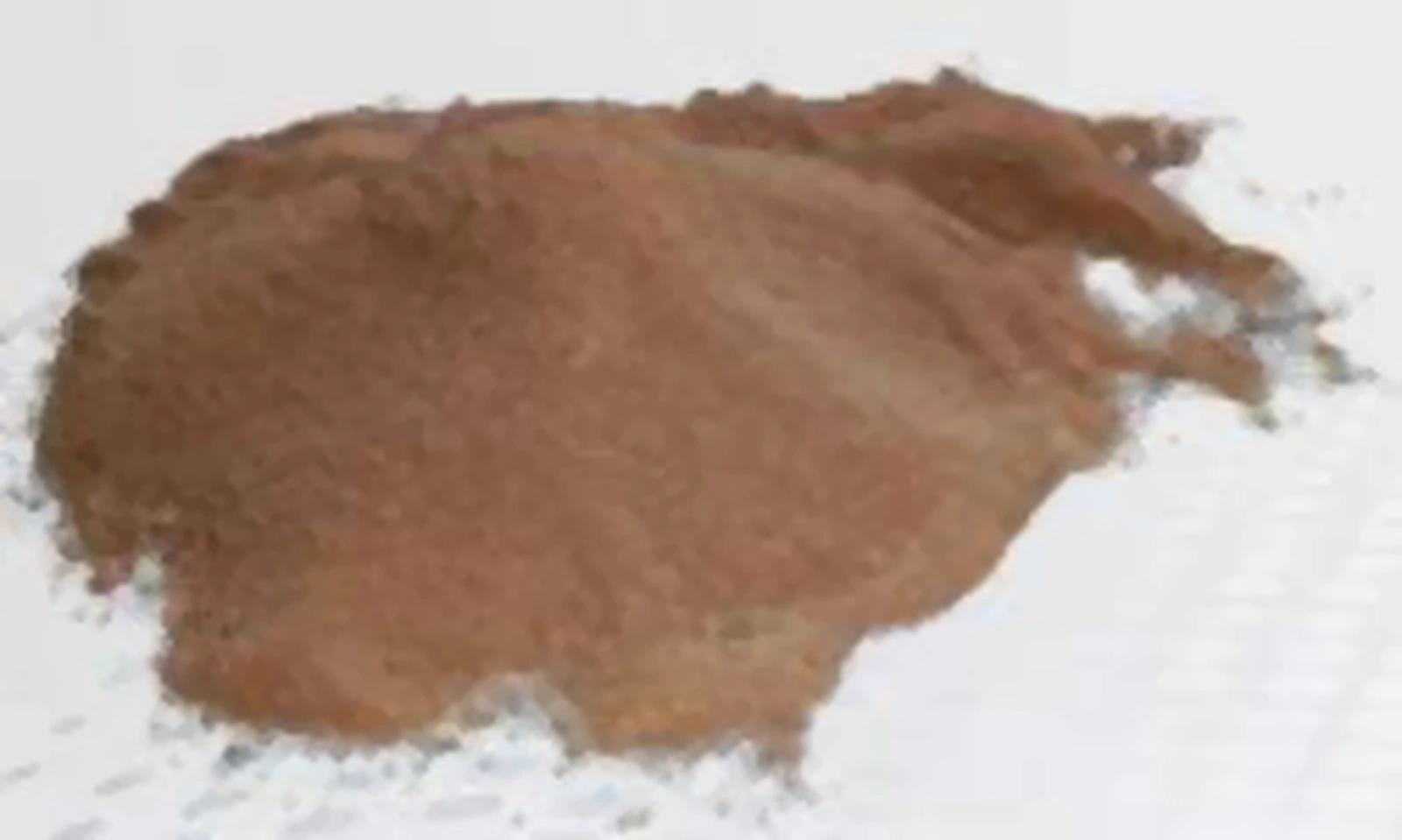

Bentonite powderSodium-base or calcium-base · Profile-listed packs: 25 and 40 kg
05
Earth pit covers
Product / configurationProfile-listed options

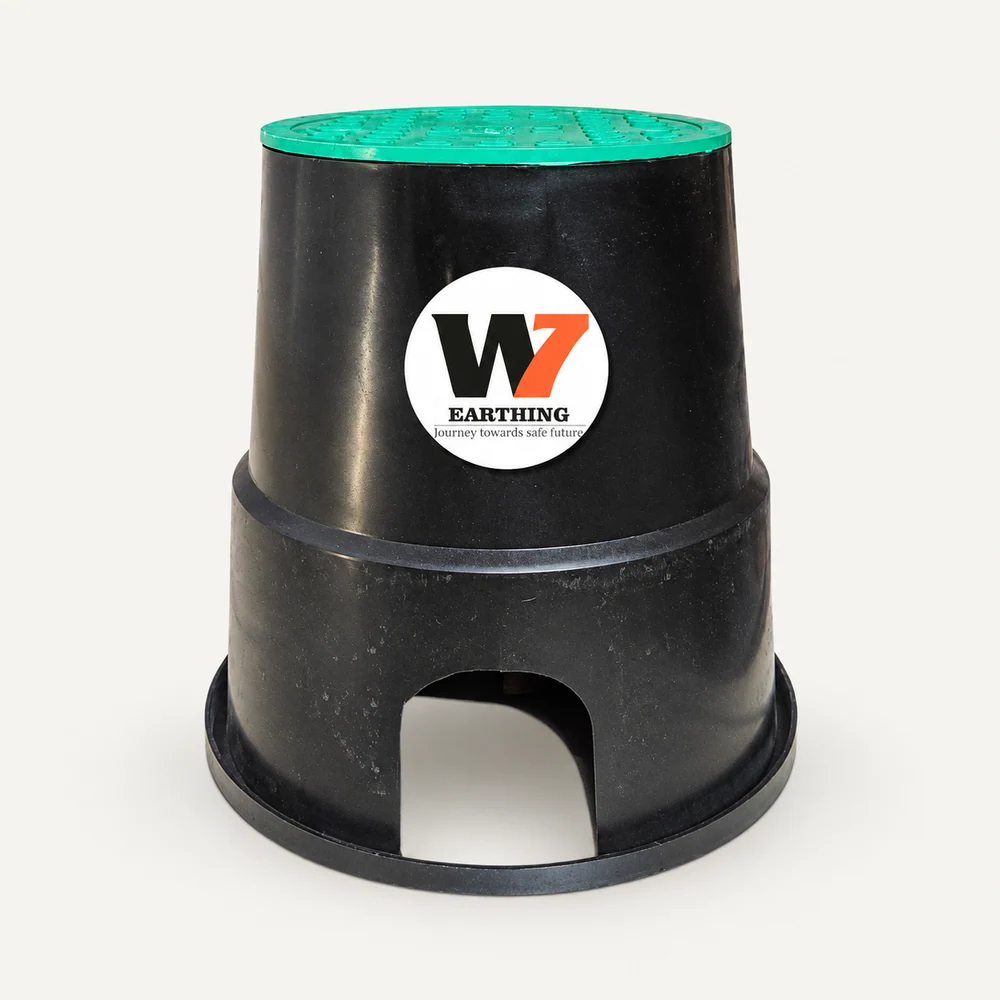

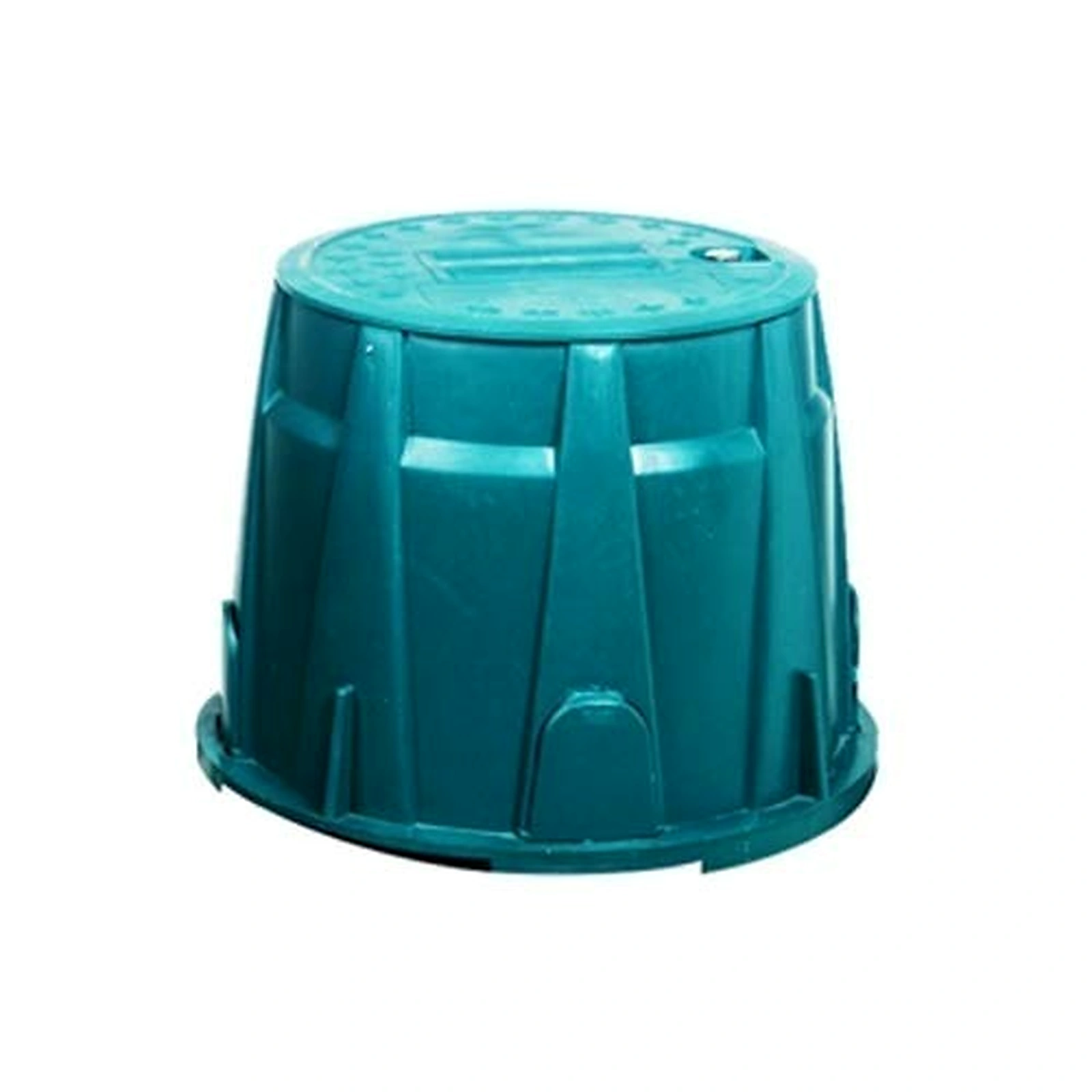

Polymer chamber coverRound 6 or 12 inch · Square 250×250, 300×300 or 450×450 mm

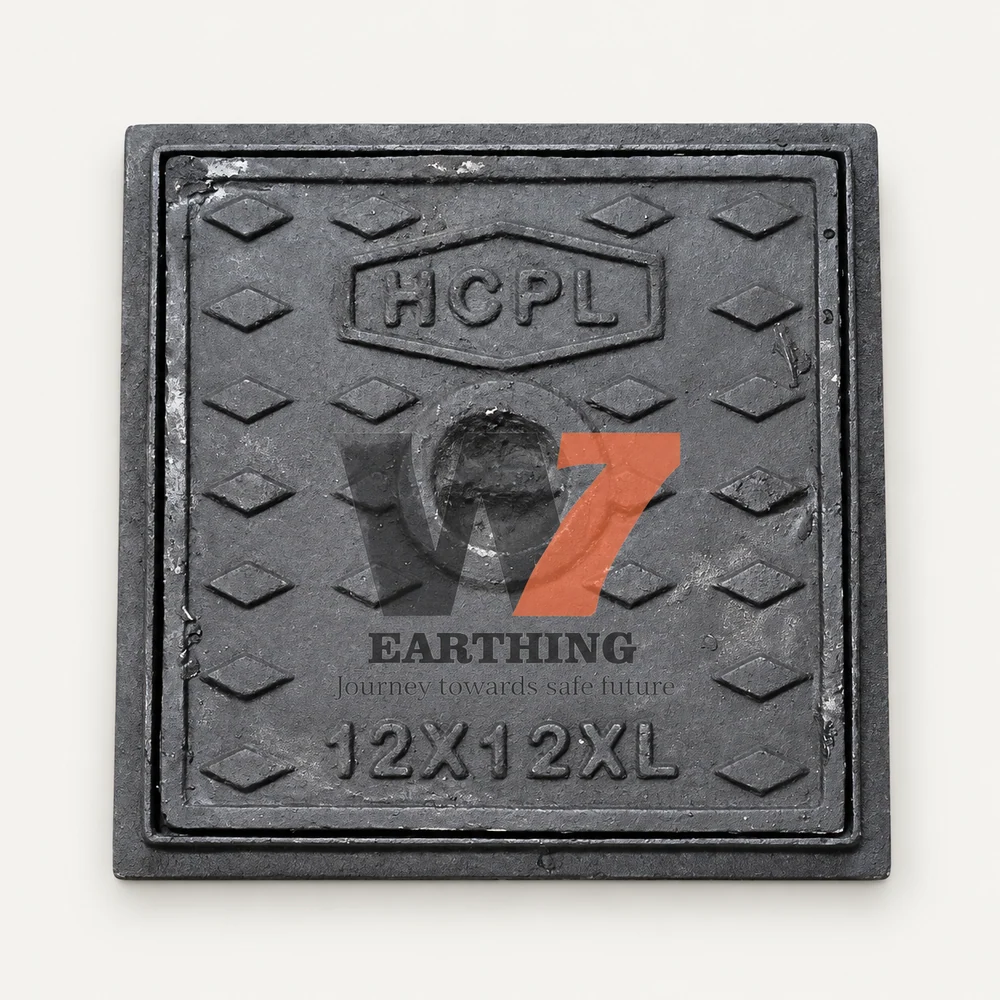

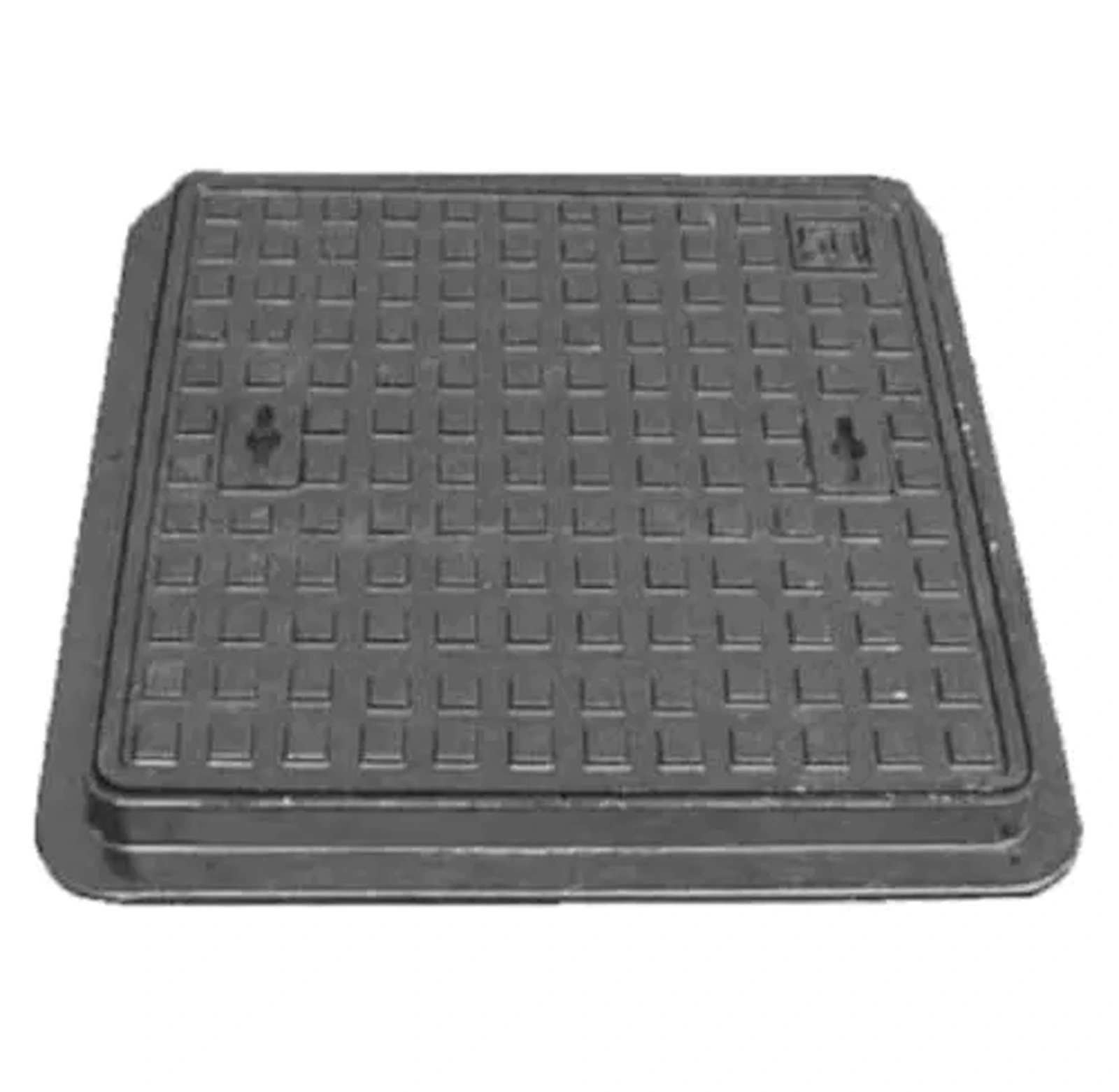

Cast-iron cover300×300, 450×450 or 600×600 mm
RCC chamber cover300×300, 450×450 or 600×600 mm
06
Earthing strips
Product / configurationProfile-listed options

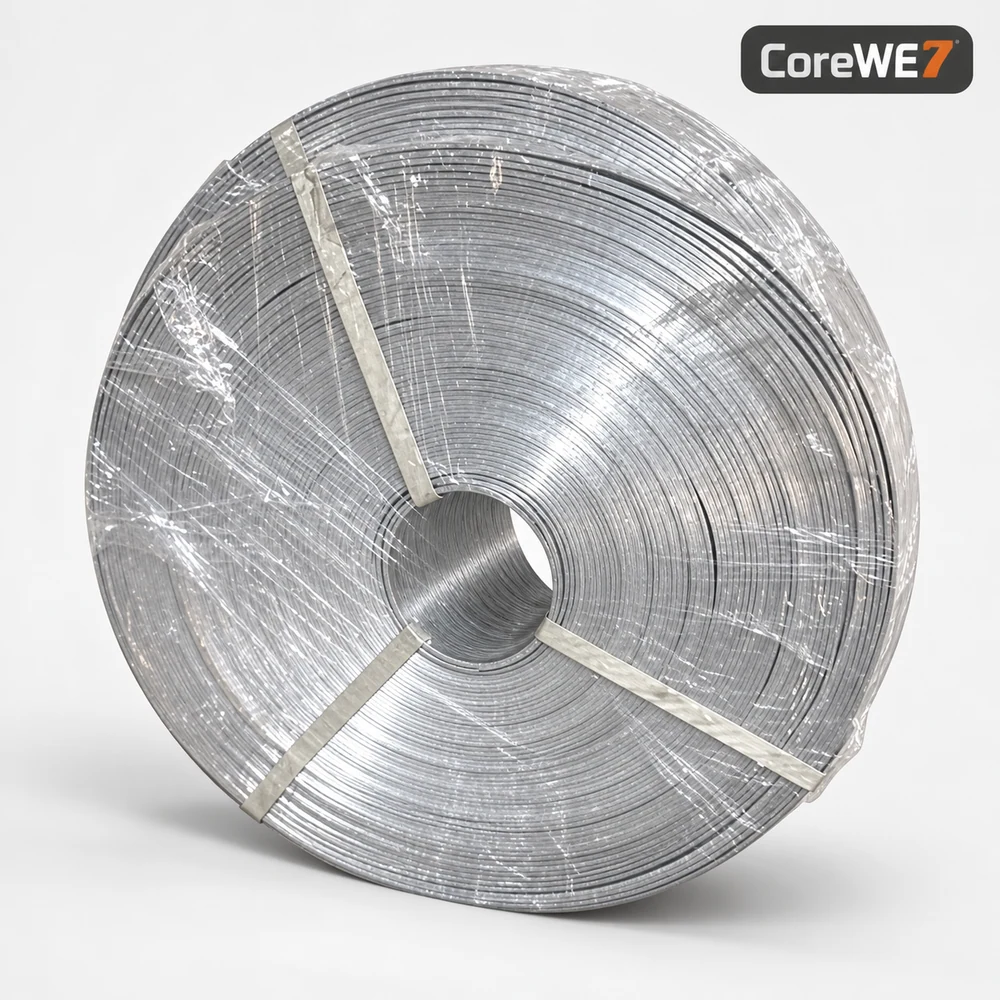

HDGI strip25×3, 25×5, 32×5, 40×5, 40×6, 50×5, 50×6, 75×6 or 75×10 mm

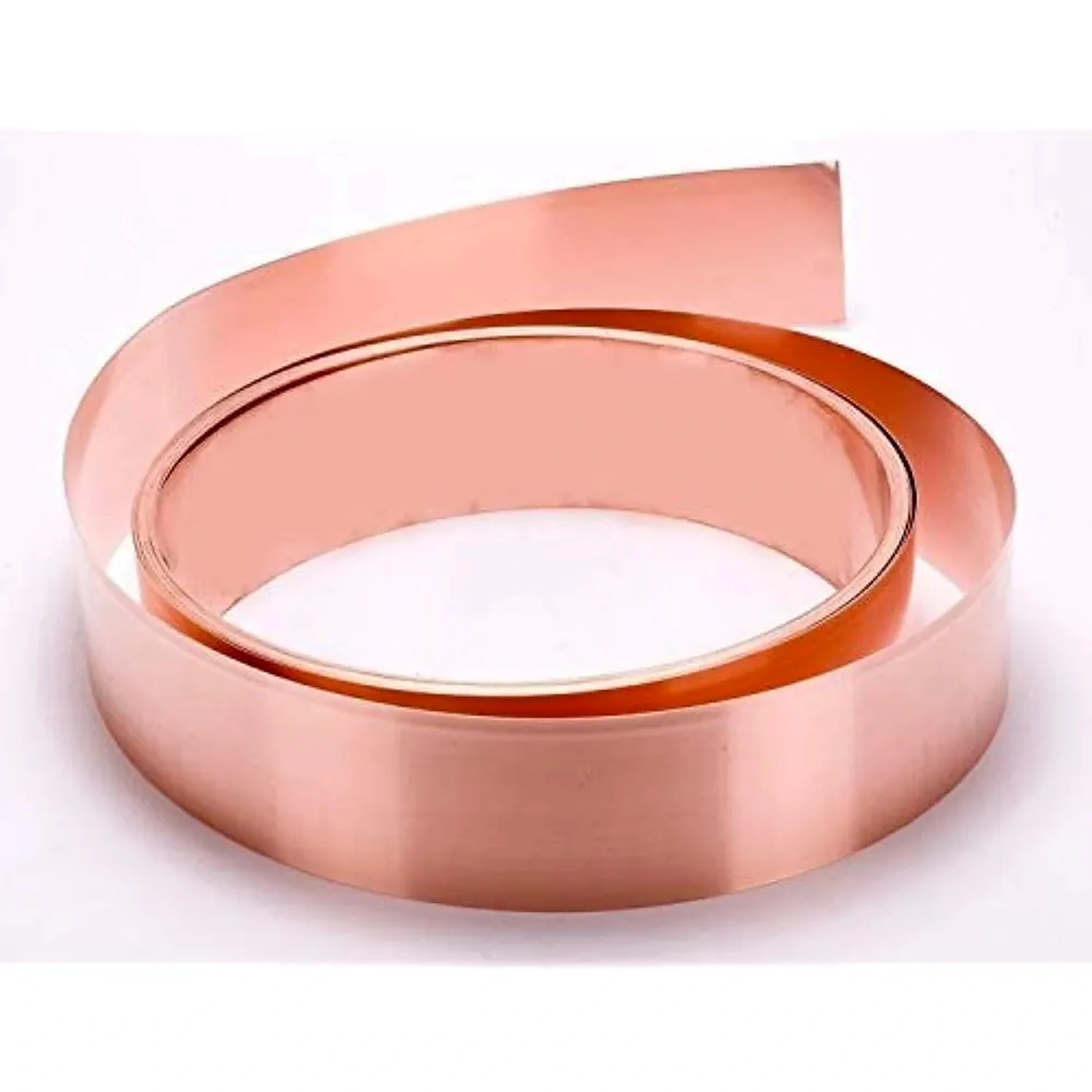

Pure copper strip20×3, 25×3, 25×5, 32×5, 40×5, 50×3 or 50×5 mm

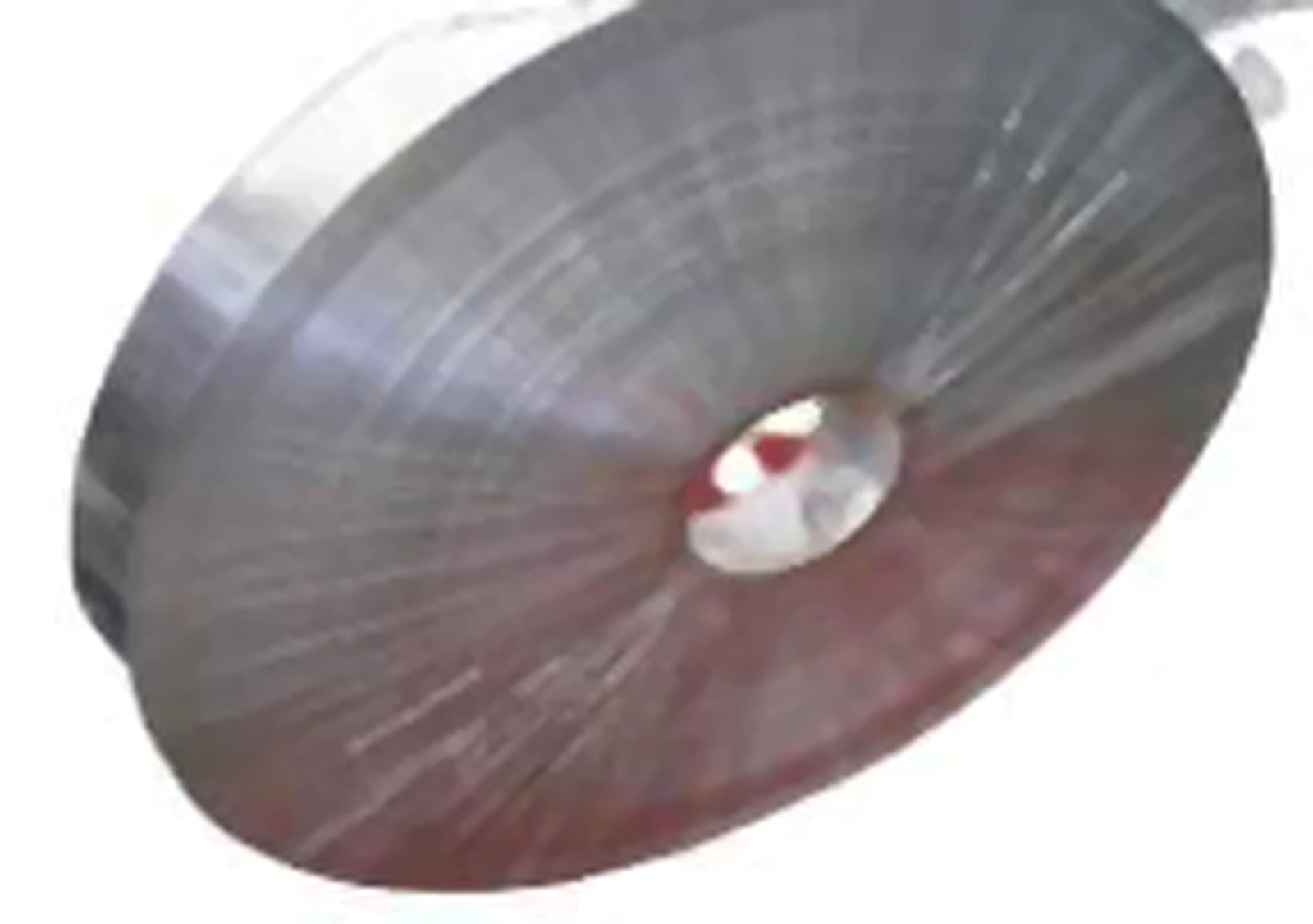

Aluminium strip20×3, 25×3, 25×5, 32×5, 40×5, 50×3 or 50×5 mm
07

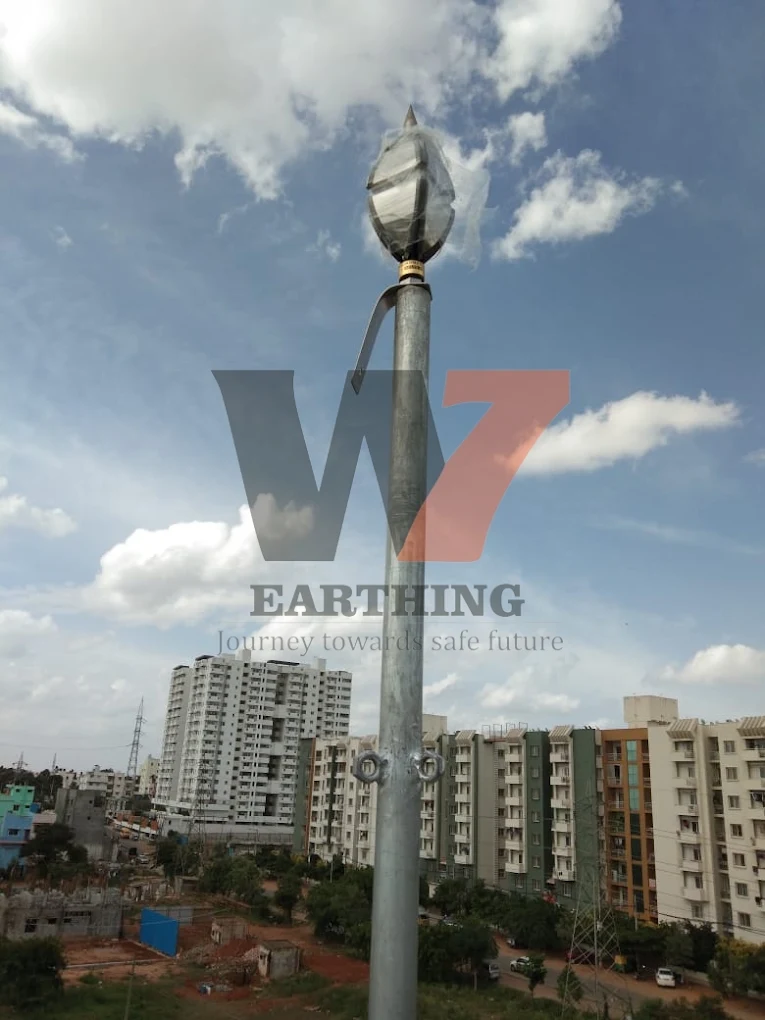

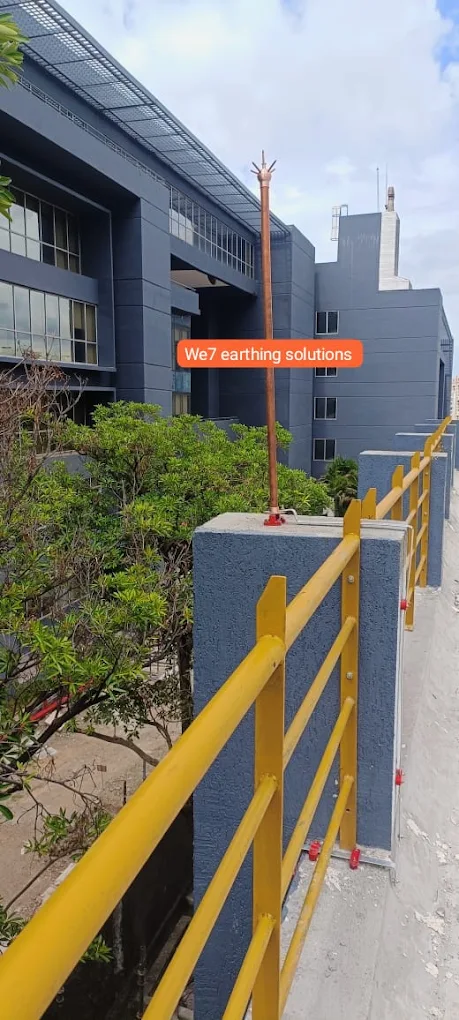

Lightning protection terminals
Product / configurationProfile-listed options

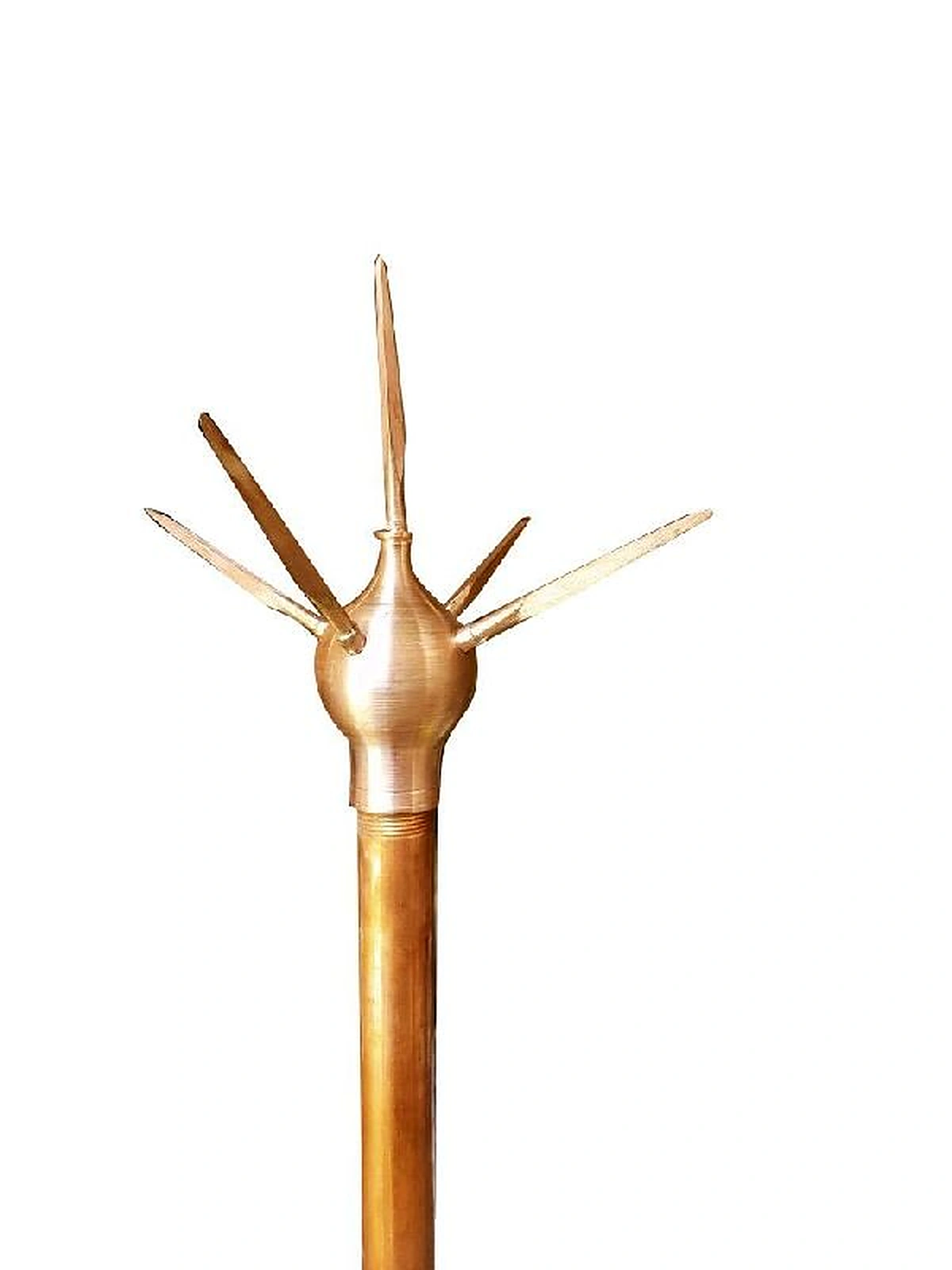

Hollow copper terminal25 mm diameter · 1 m length · Made in India

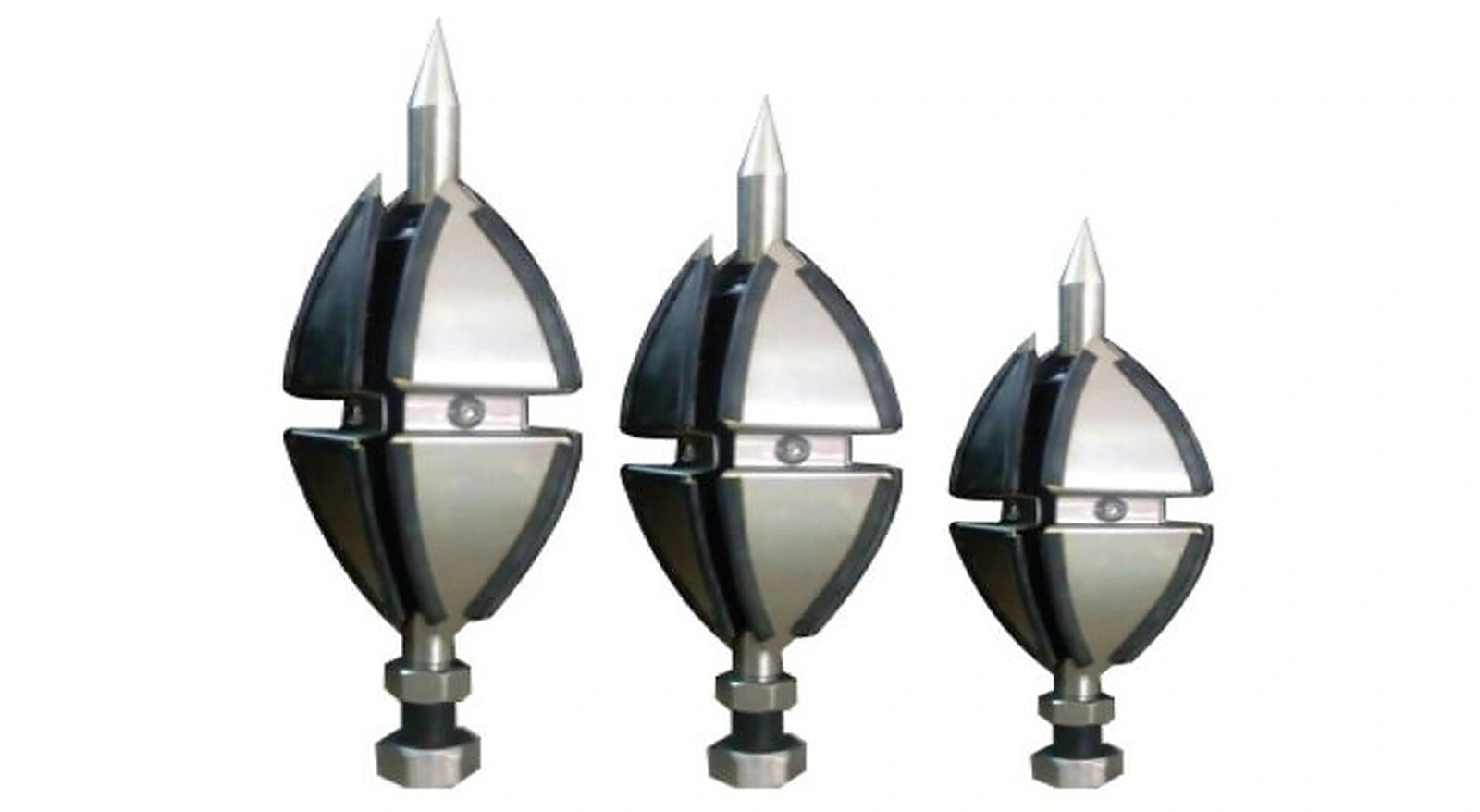

ESE terminalProfile-listed nominal radii: 56, 79 or 110 m · Final coverage requires an approved lightning-protection design

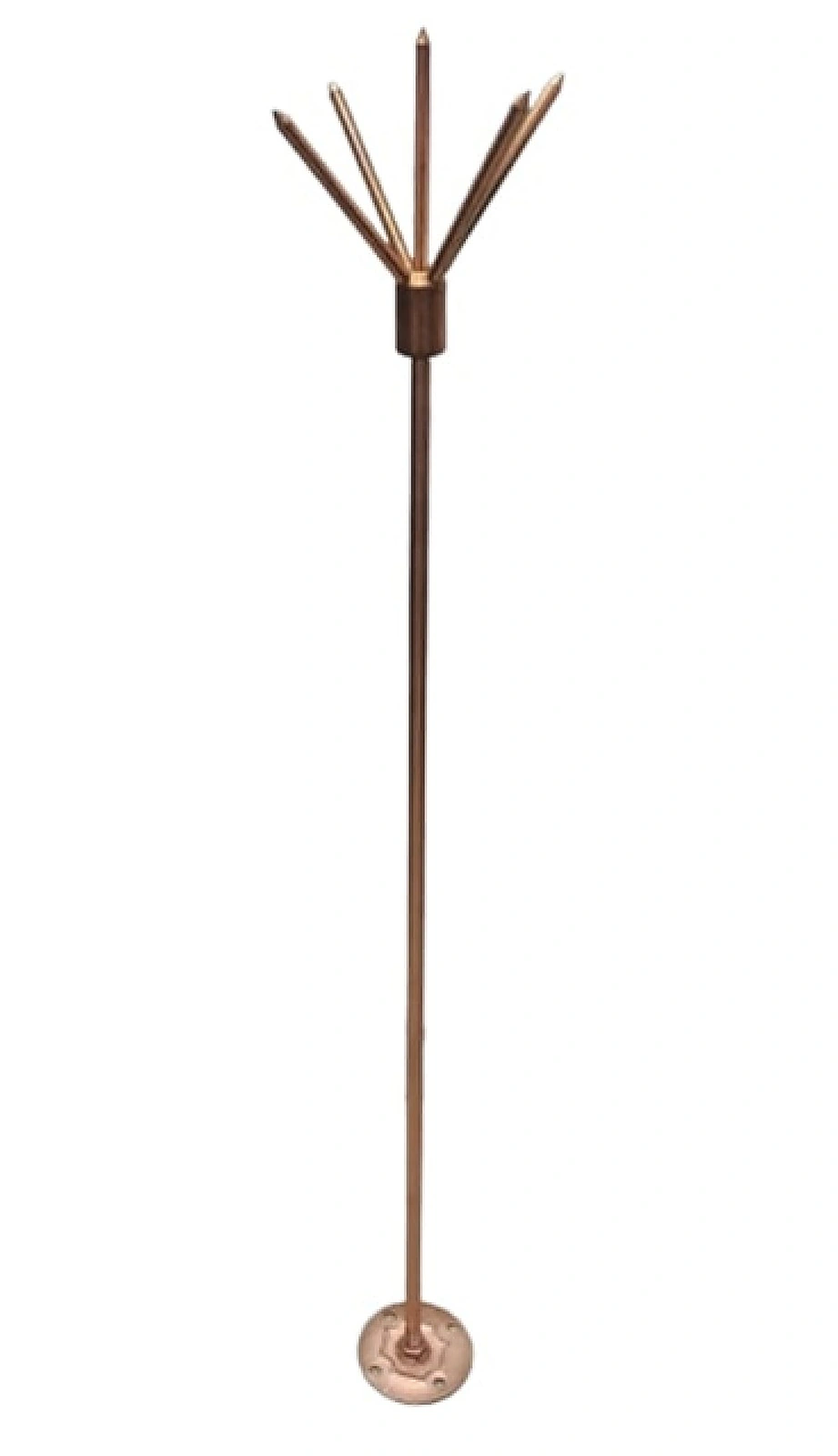

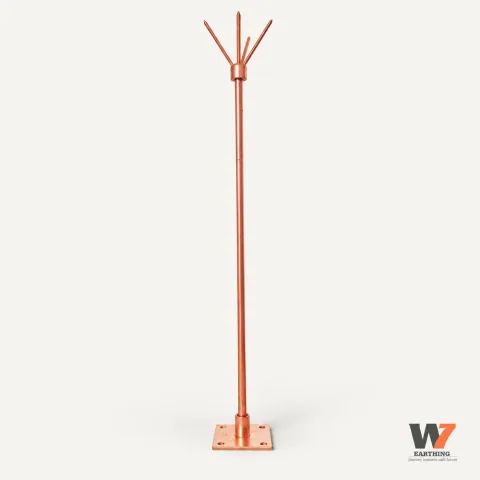

Conventional spike terminalCopper, aluminium or GI down-conductor compatibility · Configuration as per approved layout
08
Earthing plates
Product / configurationProfile-listed options

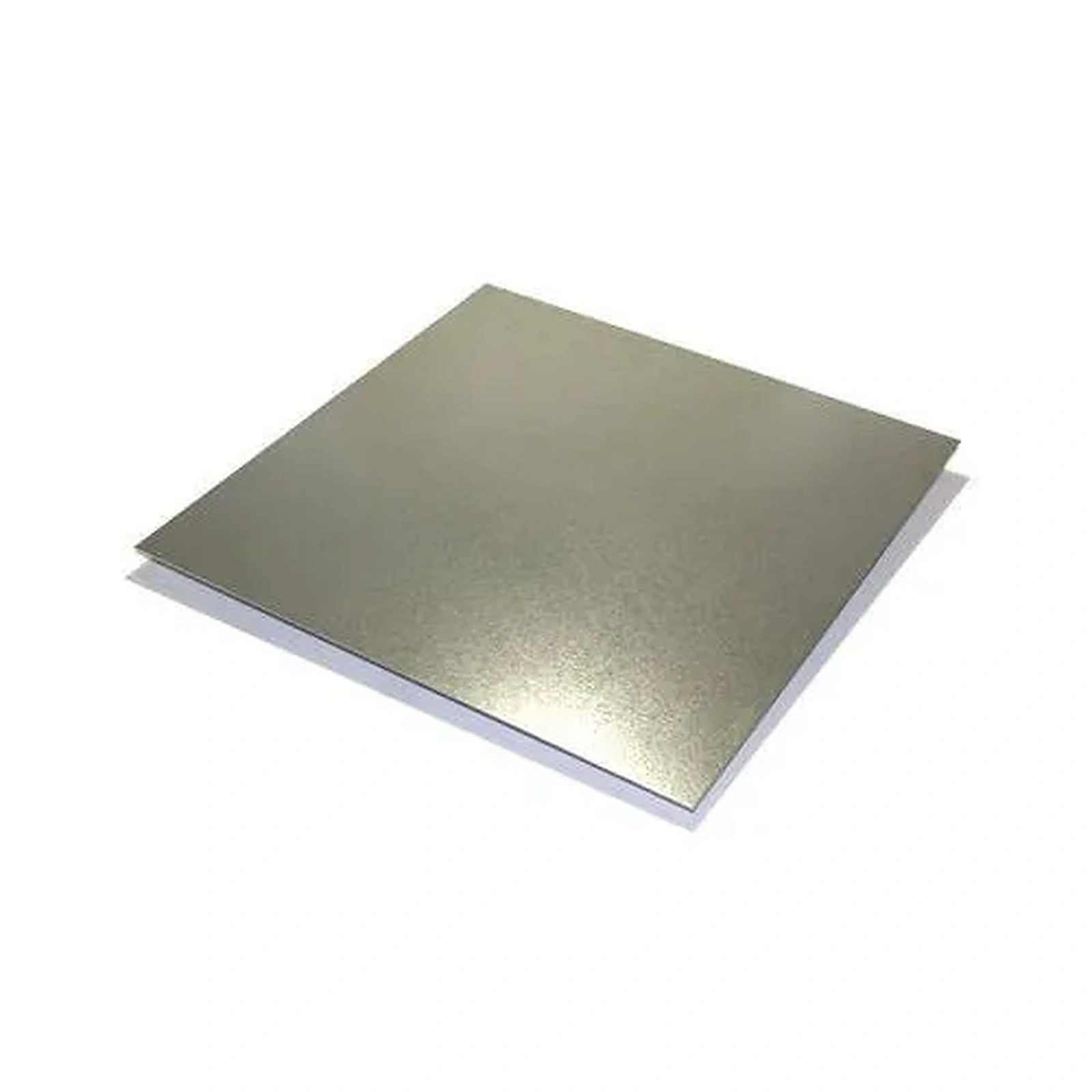

GI plate300×300, 450×450 or 600×600 mm · Thickness 3 or 6 mm

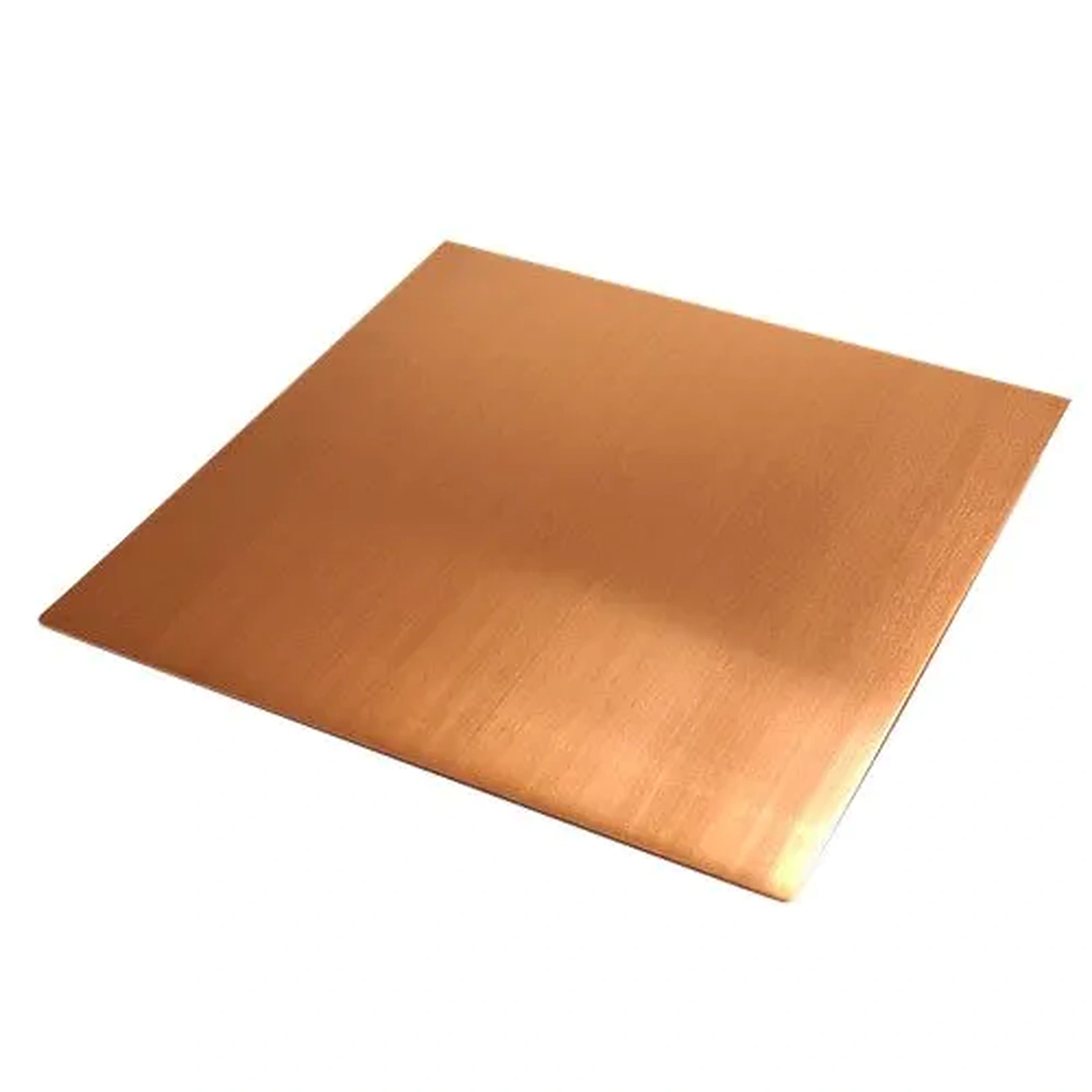

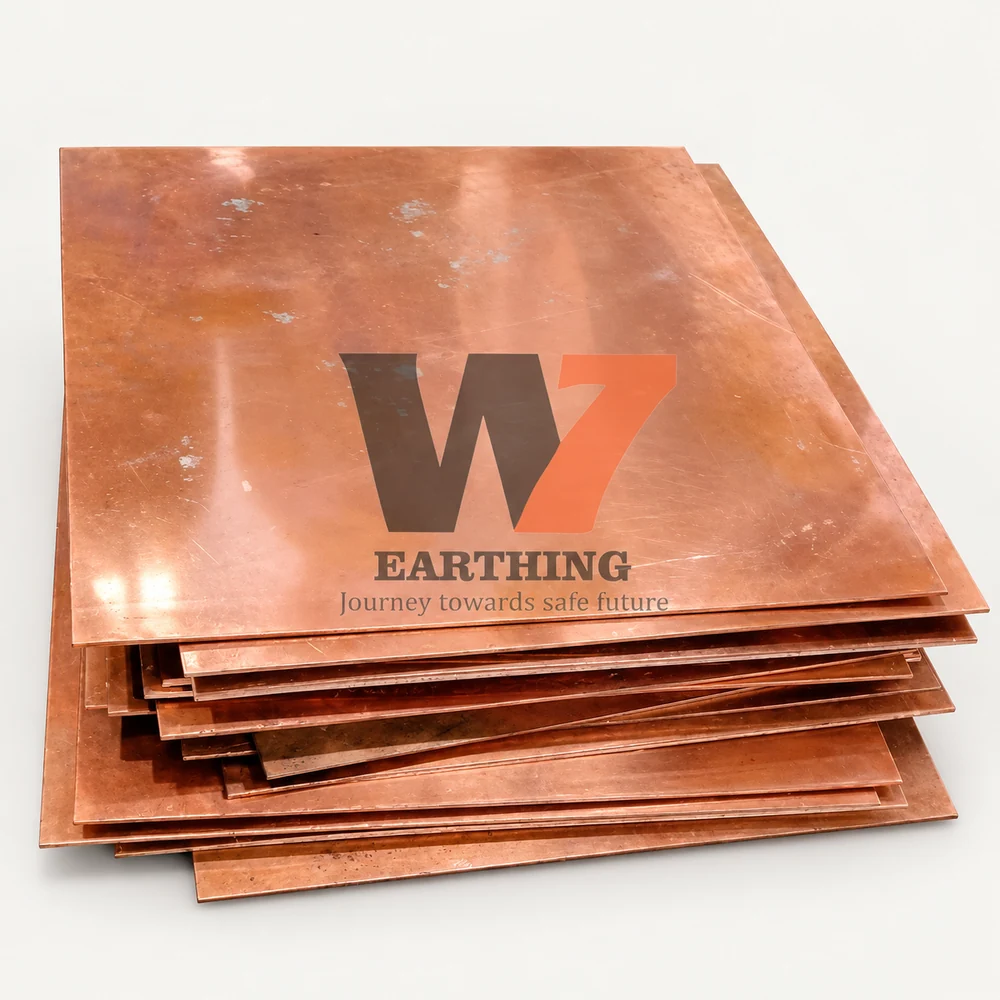

Pure copper plate300×300, 450×450 or 600×600 mm · Thickness 3 or 6 mm
09
Accessories
Product / configurationProfile-listed options

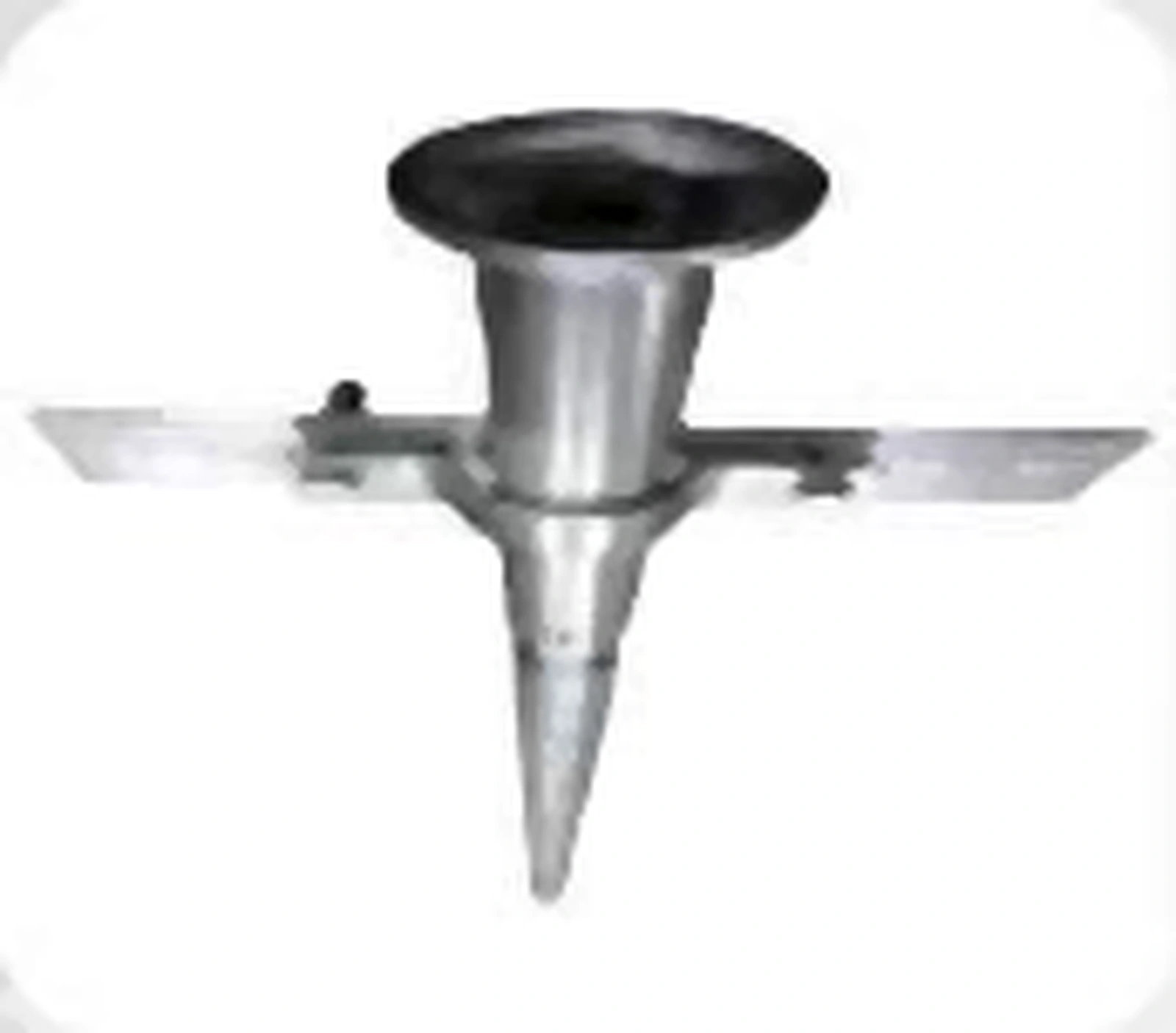

GI funnel pipeOuter diameter 25, 50 or 80 mm · Length 1, 2 or 3 m · HDGI construction

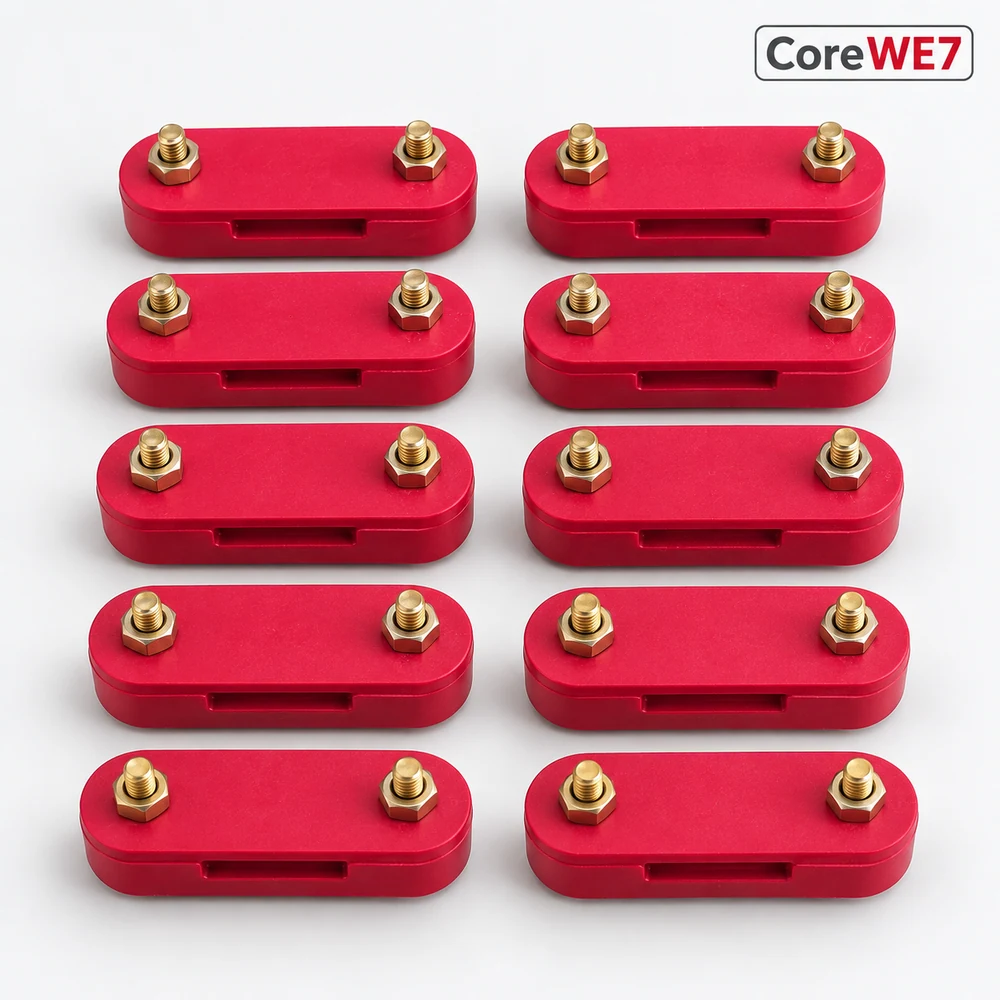

DMC earthing insulatorT-shape 25×3 mm · Flat 25×3, 25×5 or 50×5 mm · Round 40×10 or 50×12 mm
Copper wire and fittingsSize, termination and accessory set selected against the approved project requirement
10
Cable management & obstacle lighting
Product / configurationProfile-listed options
Cable tray systemsPerforated, ladder or project-selected type · GI, HDGI, aluminium or stainless-steel options · Width, thickness, load class and finish confirmed against the approved BOQ
Aviation obstruction warning lightsLow-, medium- or high-intensity obstacle-lighting options · Red or white, steady or flashing · Power, ingress protection, controller and mounting confirmed against the approved aviation requirement
